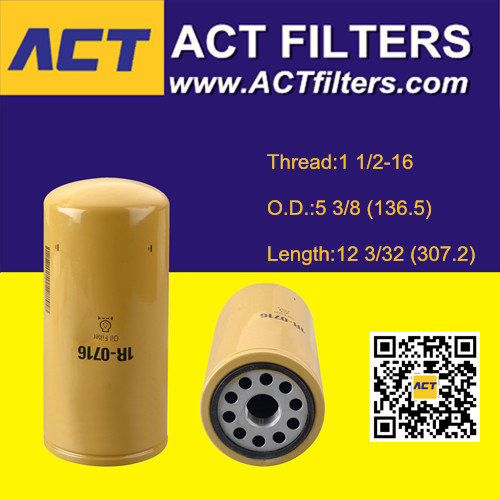

SPECIFICATIONS:
Part No: 1R-0716 1R-1808

DIMENSIONS:

Thread:1 1/2-16

O.D.:5 3/8 (136.5)

Length:12 3/32 (307.2)

CROSS REFERENCE:
AC Delco PF2101, PF879, Agco 504594D1, Atlas Copco 3216165500, 3216-1655-00, Aveling Barford ABP3001574, SWT603043, Baldwin B99, B7299, Bosch 1457434131, Case IHC 012335, 1663805C1, Caterpillar 1R0716, 1W2660, 2721788, 272-1788, 2P4005, 2Y8097, 3I1284, 4W6000, 8T7452, 1R1808, 2752604, 275-2604, Champion HO508, Claas 7983030, 3414630, Clark TL2CSO, TL-2CSO, TLSFSO, TL-SFSO, X871096, X871191, Compair Holman 9826280400001, A04425274, Coopers Fiaam AZL128, FT4940, Z184, Crosland 9334, Demag 04425274, 4425274, 499074, Donaldson LFP554005, P166175, P172535, P554005, P551808, Fendt G292100471110, Fiat 4804381, Filtration Control FCL7177, Filtration FTL1649, Fleetguard LF691A, Fleetrite LFR8691A, NL309, Fluid Dynamics 9120126, 912012600?, Foden Y05017412, Fram PH3335, PH3335FP, PH3545FP, Greyfriars 9058S/1, 9058S1, Grove 9414100363, Hanomag Henschel 3095171, Hengst H300WD01, H30WD01, Ingersoll Rand 52183233, 92036219, Kenworth KW691, KW-691, LW691, Komatsu L691PP, Kralinator L190, L1904, L190R, L190RMO, L190R-MO, L190RU, L190R-U, Locker Airmaze AML691, Luberfiner LFP4005, PH4005, Mahle KnechtOC122, OC484, Manitowoc 4132020, Mann 6771659116, W12104, W13145/2, W131452, WD13145/1, WD131451, WD13145/18, WD1314518, Motorcraft FL326, FL326FP, Napa 1792, 1792MP, 1877, Nelson Winslow 3933642ZF, Perkins 4587260, Orenstein and Koppel 103854, 1455328, 1499396, Purflux 6121752540, LS846, Purolator Facet L60069, L65236, PC230, PC230MIC10, PC230MIC25, PER69, Ryco HDZ235, Sakura C5502, C-5502, Sennebogen 085693, SF Schupp SP4459, Sogefi ProFT4940/SGP, FT4940SGP, Soparis CV518, Sure SFO4005, Tecfil PS405, PSL405, Tecnocar R89, UFI 23.412.00, 2341200, Vauxhall GM 2 5014776, 25014777, 6439657, Volvo 172015003, Waukesha 199395, Wix 51792, 51792MP, 551792, Woodgate WGL691, WGL691R

APPLICATIONS:
Caterpillar 120H(3126B Engine), 12M Mk II(C 9.3 Engine), 135H(3126B Engine), 140M(C9 Engine), 140M Mk II(C9.0, C9.3 Engine), 14M(C11 Engine), 160M(C9 Engine), 160M(C9, C 9.3 Engine), 160M Mk III(C9.3 Engine), 16M(C13 Engine), 2290; 2390; 2391; 2491(C9 Engine), 24M(C18 Engine), 2590(C9 Engine), 3176, 3176B, 330C(C9 Engine), 330C; 330CL; 330CLN; 330CMH(C9 Engine), 330CMH(C9 Engine), 330D; 330DL(C9 Engine), 330DFM(C9 Engine), 330DMH(C9 Engine), 336D; 336DL; 336DLN(C9 Engine), 336E; 336EL(C9.3 Engine), 3406, 3406B; 3406C, 3406E, 3406E, 3406E, 3406E, 3406E, 3408B, 3408C, 340DL(C9 Engine), 3412, 3412, 3412C, 3412C, 3412C, 345C(C13 Engine), 345C; 345CL(C13 Engine), 345CMH(C13 Engine), 345D; 345DL(C13 Engine), 349D; 349DL(C13 Engine), 349E(C13 Engine), 3508, 3508, 3508B, 3508B, 3512, 3512, 3516B, 3516B, 365C; 365CL(C15 Engine), 365CMH(C15 Engine), 374DL(C15 Engine), 385B(3456 Engine), 385C LMH(C18 Engine), 385C; 385CL(C18 Engine), 390D; 390DL(C18 Engine), 5090B(3456 Engine), 511(C9 Engine), 521; 522; 532(C9 Engine), 521B; 522B(C9 Engine), 5230B(3516B Engine), 541(C9 Engine), 541 Mk II(C9 Engine), 551; 552(C9 Engine), 552 Mk II(C9 Engine), 568FM(C9.3 Engine), 621G(C15 Engine), 621H(C13 Engine), 623G(C15 Engine), 623H(C13 Engine), 627G(C15 Engine), 627G(C9 Engine), 627H(C13 Engine), 631G(C18 Engine), 637E(3306 Engine), 637G(C18 Engine), 637G(C9 Engine), 657G(C15 Engine), 730(C11 Engine), 735B(C15 Engine), 740; 740E(3406E Engine), 740; 740E(C15 Engine), 740B(C15 Engine), 769D(3408E Engine), 770G(C15 Engine), 771D, 772G(C18 Engine), 773G(C27 Engine), 775G(C27 Engine), 776D(3508B Engine), 777D(3508B Engine), 777F(C32 Engine), 777G(C32 Engine), 784C(3512 Engine), 784C(3512 Engine), 785C(3512B Engine), 785D(3512C Engine), 789C(3516B Engine), 789D(3516 Engine), 793C(3516B Engine), 793D(3516B Engine), 797B(3524B Engine), 814F(C9 Engine), 815F(C9 Engine), 816F(C9 Engine), 824H(C15 Engine), 825H(C15 Engine), 826G Mk II(3406 Engine), 826H(C15 Engine), 834H(C18 Engine), 836H(C18 Engine), 844(3412E Engine), 844H(C27 Engine), 854G(Caterpillar 3508B Engine), 966H(C11 Engine), 966K(C9.3 Engine), 972H(C13 Engine), 972K(C9.3 Engine), 973C; 973C WH(C9 Engine), 973D(C9 Engine), 980H(C15 Engine), 980K(C13 Engine), 988H(C18 Engine), 990 Mk II(3412, 3412E Engine), 990H(C27 Engine), 992G(3508B Engine), 992K(C32 Engine), 992K(C32 Engine), 993K(C32 Engine), 994D(3516B Engine), 994F(3516B Engine), 994H(3516B Engine), AD30(3406E Engine), AD30(C15 Engine), AD55B(C27 Engine), AD60(C27 Engine), C10, C10, C11, C11, C12, C12, C13, C13, C15, C15, C15; C16, C16, C18, C18, C18, C27, C27, C32, C32, C7, C7, C9, C9, C9, C9.3, D11R(3508, 3508B Engine), D11T(C32 Engine) From Serial No AMA, JEL, JNS, MDG, D6R(C9 Engine), D6R DS; D6R FTC; D6R XL(C9 Engine), D6T LGP; D6T XL; D6T XW(C9.3 Engine), D6T; D6T LGP; D6T XL; D6T XW(C9 Engine), D7E(C9.3L Engine), D8T(C15 Engine), D9T(C18 Engine), D9T(C18 Engine), G3306, G3406, G3412, G3412C, G3512E, G3516E, G3520C, G3520E, M330D(C9 Engine), PL83(C15 Engine), PL87(C15 Engine), PM200(C18 Engine), PM201(C18 Engine), PM3412, PM565B(3408E Engine), RM300(C11 Engine), RM500(C15 Engine), TK711; TK721; TK722; TK732; TK741; TK751; TK752(C9 Engine), W345C(C13 Engine), W345C MH(C13 Engine),
