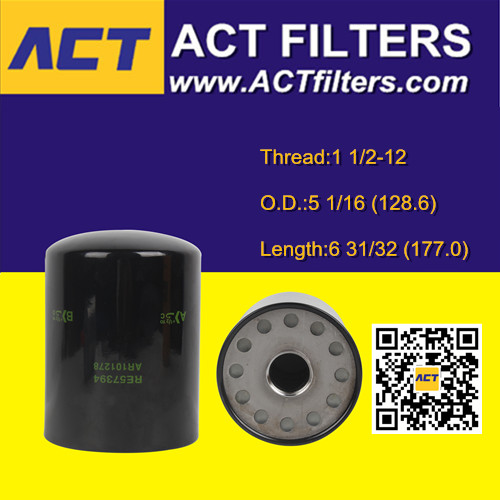

SPECIFICATIONS:
Part No: RE57394 RE46380 AR98329 AR101278

DIMENSIONS:
Thread:1 1/2-12
O.D.:5 1/16 (128.6)
Length:6 31/32 (177.0)

CROSS REFERENCE:
AC Delco PF1066, Agco AG716976, Alco SP1324, SP-1324, Baldwin BT352, BT486, Caterpillar 3I1372, Coopers Fiaam LSF5036, Z206, Z648, Donaldson LFP558329, P558329, P779201, Fil ZP570A, Fleetguard LF3317, LF3567, Fleetrite LFR83317, LFR83567, Ford 9613340, FramPH3773, PH7576, Hengst H215W, Ingersoll Rand 36870038, John Deere AR101278, AR98329, DZ101880, DZ101881, RE46380, RE57394, Kohler 223673, Kralinator L208, L208U, Luberfiner PH720, PH-720, Mann W1254X, Napa 1824, Purolator Facet L40314, PER314, Sakura C7601, C-7601, SF Schupp SP4536, Sure SFO7394, Timberjack 416256, TRP 1535307, Vapormatic CPD5035, CPD5041, VPD5035, Vauxhall GM 25011954, White 303483614, 30-3483614, Wix 51824, 551824, Woodgate WGL3317

APPLICATIONS:
Ag Chem 2104 Terra-Gator 187kW 255hp(JD 6081 AF Engine) From 01/99, 3104 Terra-Gator(JD 6081 Engine), 3104 Terra-Gator 224kW 305hp(JD 6081 H Engine) From 01/98, 4104 Terra-Gator(JD 6081 Engine), 4104 Terra-Gator 224kW 305hp(JD 6081 H Engine) From 01/97, 1803 Terra-Gator(JD 6081H Engine), 1844 Terra-Gator(JD 6081H Engine), 1844 Terra-Gator 238kW 325hp(JD 6081 H Engine) From 01/94 To 12/00, 6103 Terra-Gator 187kW 255hp(JD 6081 A/H Engine) From 01/96, 6103; 6104 Terra-Gator(JD 6081A Turbo Engine), 8103 Terra-Gator 224kW 305hp(JD 6081 H Engine) From 01/97, 8103; 8104 Terra-Gator(JD 6081H Engine), 8144 Terra-Gator 238kW 325hp(JD 6081 H Engine) From 01/98, Aksa AJD220; AJD275(JD 6081 PowerTech Engine), Atlas Copco 125KW; 150KW; 175KW; 200KW(JD 6081 Engine), Blount 720FB(JD6081T Engine), Blue BirdAll American(John Deere 6081 8.1L CNG Engine), Vision(GMC 8.1L Propane Engine), Chicago Pneumatic CP8175GS(JD 6076A Engine), Ford9100(John Deere Engine), Generac GR160(JD 6081T Engine), GR190(JD 6081A Engine), GR210(JD 6081A Engine), Godwin HL6, Hitachi LX150-2(JD 6076 Engine), LX150-2(JD 6081 Engine), LX150-3; LX150-5(John Deere Engine), Ingersoll Rand HP600WJD(JD 6076A Engine), XP750WJD(JD 6076A Engine), John Bean 9300(JD 6076T Engine), John Deere 1085; 1085 H4 Hydro 4, 1177, 1177, 1177; 1177H; 1177 S2, 1188, 1550(6081 Engine), 1570(6081AJ South America version Engine), 2054(CD 6068 HZ001 Engine) From 01/90 To 12/99, 2056(RG 6076 AZ031 Engine) From 01/90 To 12/99, 2056, 2056; 2058, 2064; 2066(6076 PowerTech Engine), 2064HM 169kW 230hp(RG 6076 AZ030 Engine) From 01/90 To 12/99, 2064HM 184kW 267hp(RG 6081 HZ002 Engine) From 01/99, 2066 199kW 271hp(RG 6076 HZ031 Engine) From 01/90 To 12/99, 2254, 2256, 2256, 2256 167kW 228hp(RG 6081 HZ Engine) From 01/99, 2258 196kW 267hp(RG 6081 HZ005 Engine) From 01/99, 2258; 2264; 2266, 2266 204kW 278hp(RG 6081 HZ001 Engine) From 01/99, 2266 Extra 242kW 330hp From 01/99, 230LC, 250D; 300D(6081H Engine), 330CLC(6081H Engine), 330LC, 3554(6081H Engine), 370(6081H Engine), 370C(6081H Engine), 3754D(6090H PowerTech Engine), 380GLC(6090HT Engine), 4050(6359T Engine), 4050(6466DR/TR Engine), 4050(6466 Engine), 4055(7.6L Engine), 4055 94kW 128hp(6076T, 6076A Engine) From 01/88 To 12/92, 4240(466 Diesel Engine), 4240S, 4250(6466T Engine) From 01/83 To 12/88, 4250, 4255, 4255 106kW 145hp(6076T Engine), 4350, 4350, 4430(6404T Engine) From 01/73 To 12/77, 4440(466T Engine), 4450(6466T Engine) From 01/83 To 12/88, 4450, 4455, 4455 117kW 160hp(6076T Engine) From 01/88 To 12/92, 4555, 4555 115kW 157hp(6076T or 6076A Engine) From 01/88 To 12/92, 4560, 4560 114kW 155hp(6076T Engine) From 01/91 To 12/94, 4640(466TI Diesel Engine), 4650(6076 7.6L Engine), 4650 122kW 166hp(6466A Engine) From 01/83 To 12/88, 466A; 466D; 466T, 4755, 4755 140kW 191hp(6076T/6076A Engine) From 01/89 To 12/91, 4760, 4760 129kW 175hp(6076A Engine) From 01/91 To 12/94, 4840, 4850(6076 7.6L Engine), 4850 142kW 193hp(6466A Engine) From 01/83 To 12/88, 4955, 4955 168kW 229hp(6076T/6076A Engine) From 01/88 To 12/92, 4960, 4960 147kW 200hp From 01/91 To 12/94, 530B; 535(6081T Engine), 535(6081 PowerTech Engine), 5400(400, 500 Engine), 5460, 560D(6081H, 6081T Engine), 5720(6466 Engine), 5730, 5820(619 Engine), 5820, 5830, 6076T; 6076A; 6076H, 6081A PowerTech 205kW 275hp, 6081A; 6081H; 6081T, 6081AFM, 6081H PowerTech 224kW 300hp, 6081T PowerTech 149kW 200hp, 6090SFM, 619A, 644C, 644D(6466T Engine), 644E, 644G(6076 Engine), 644H, 644J(6081H Engine), 6466A; 6466D; 6466T, 792, 792 134kW 182hp, 660D(6081 PowerTech Engine), 6610, 6610 84kW 114hp From 01/97 To 12/01, 6619A, 6620, 6620, 6622, 6650, 6650 229kW 310hp(6081T Engine), 6750 290kW 395hp(6125T Engine), 6850 353kW 480hp(6125T Engine), 690B, 690C, 693B, 693C, 6950 386kW 540hp(N14-E-525 Engine), 7020, 724J(6081 PowerTech Engine), 740A, 740E, 740G, 743A, 748E, 748G(6081T Engine), 748G Mk II(6081 Engine), 762A, 762B, 770, 7700(6076T Engine) From 01/92 To 12/96, 7700(6076T Engine), 7700 110kW 150hp(6081T Engine), 770A(6466 Engine), 770C; 770CH(JD 6081 PowerTech Engine), 770C; 770CH(JD 6081 PowerTech Engine), 7710, 7710(6081T Engine), 7710, 7710; 7710 A; 7710 Powermode 118kW 161hp(6081T Engine), 7720, 7722, 772A(6466 Engine), 772B; 772BH(JD 6076 Engine), 772CH(JD 6081 PowerTech Engine), 772CH(JD 6081 PowerTech Engine), 7800(6076T Engine) From 01/92 To 12/96, 7800(6076T Engine), 7800, 7800 125kW 170hp(6081T Engine), 7810, 7810(6081T Engine), 7810; 7810 A; 7810 Powermode 129kW 176hp(6081T Engine) From 01/97 To 12/03, 790, 790D, 793D, 8100(6081 8.1L Engine), 8100; 8100T 136kW 185hp(6081T Engine), 8100T(6081H Engine), 8100T(6081 8.1L Engine), 8110; 8110T(6081H Engine) From 01/99 To 12/02, 8110; 8110T(6081T Engine), 8110; 8110T 157kW 214hp(6081T Engine), 8200(6076H Engine) From 01/94 To 12/98, 8200(6076 7.6L Engine), 8200(6081 8.1L Engine), 8200; 8200T 155kW 211hp(6081T Engine), 8200T(6081H Engine), 8200T(6081 8.1L Engine), 8210; 8210T(6081H Engine) From 01/99 To 12/02, 8210; 8210T(6081T Engine), 8210A; 8210T 153kW 200hp(6081T Engine), 8100(6076H Engine) From 01/94 To 12/98, 8100(6076 7.6L Engine), 8560 146kW 198hp(6076H Engine) From 01/89 To 12/93, 8570(JD 6 Cyl 7.6L Engine), 8570 184kW 250hp(6076H Engine) From 01/93 To 12/96, 862, 862B, 8630, 8640, 8640 202kW 275hp(John Deere Engine) From 01/79 To 12/82, 8650, 8650 213kW 290hp(6619A Engine) From 01/82 To 12/88, 8300(6076 7.6L Engine), 8300(6081 8.1L Engine), 8300; 8300T(6076H Engine) From 01/94 To 12/98, 8300; 8300T 170kW 232hp(6081T Engine), 8300T(6081 8.1L Engine), 8310; 8310T(6081H Engine) From 01/99 To 12/02, 8310; 8310T(6081T Engine), 8310; 8310T 190kW 259hp(6081T Engine), 8400(6081 8.1L Engine), 8400; 8400T(6081H Engine) From 01/94 To 12/98, 8400; 8400T 191kW 260hp(6081T Engine), 8400T(6081 8.1L Engine), 8410; 8410T(6081H Engine) From 01/99 To 12/02, 8410; 8410T(6081T Engine), 8410; 8410T 218kW 297hp(6081T Engine), 844, 8450, 8450 138kW 187hp(John Deere Engine) From 01/82 To 12/88, 8450 186kW 250hp(6466A Engine) From 01/93 To 12/96, 848G(6081 PowerTech Engine), 850, 850B, 850C(JD 6076 Engine), 850C Mk II(JD 6081 Engine), 855, 8820, 8850, 8850 276kW 370hp(John Deere Engine) From 01/82 To 12/88, 890, 890A, 892D; 892D LC, 892E LC, 8955T, 9020; 9020T(6081T PowerTech Engine), 9100, 9100 194kW 260hp(6081H Engine) From 01/96 To 12/02, 9100; 9100T(6081 Engine), 9400; 9400T 335kW 455hp(PowerTech 12.5 Engine), 9410, 9500, 9500, 9500, 9500, 9500, 9500, 9510, 9510, 9510, 9540 WTS 146kW 199hp(6081T Engine) From 01/01, 9550, 9550, 955T, 9600(6076 PowerTech Engine), 9600, 9610, 9610, 9650, 9650 CTS, 9650; 9750(JD 6081 PowerTech Engine), 9650CTS(6081 PowerTech Engine), 9650STS(JD 6081 PowerTech Engine), 9660 CTS, 9750 STS(JD 6081 PowerTech Engine), 9750 STS, 9780 CTS, 9780 CTS(6081 Engine), 9780 CTS(6081 Powertech Engine), 9780 CTS 247kW 336hp(6081T Engine) From 05/99, 985; 985 H4 Hydro 4, 985H4 Hydro 4, 990, 990 29kW 40hp(Yanmar Engine) From 01/01, 992D LC, 992D LC 198kW 269hp(John Deere 6619A Engine), 9940, 9950(DTA466 Engine), 9960; 9965(DTA466 Engine), 9970(6076 PowerTech Engine), 9970(6081 PowerTech Engine), 9970, 9976, 9986(6081 PowerTech Engine), 9986, CTS, CTS II, JD644B, JD646, JD646B, JD646C, JD743, JD762, JD770B; JD770BH(JD 6076 Engine), JD8560, JD860B, STS 9650 STS , STS 9750 STS , WTS 9540 WTS 146kW 199hp(6081T Engine) From 07/01, WTS 9560 WTS 166kW 226hp(6081T Engine) From 07/01, WTS 9580 WTS 184kW 251hp(6081T Engine) From 07/01, WTS 9640 WTS 184kW 251hp(6081T Engine) From 07/01, WTS 9660 WTS 205kW 280hp(6081T Engine) From 07/01, WTS 9680 WTS 228kW 311hp(6081T Engine) From 07/01, Krone Big M(JD 6081 Engine), Big M 224kW 300hp(John Deere 6081H Engine) From 03/98, Lancer Boss P150, Northern Lights NL676A; NL676AB; NL676T; NL681A; NL681AB; NL681T, NL681H, Pixall DB18(JD 6076 Engine), Prentice ATL425(JD 6076T Engine), Taylor 748G(John Deere 7076T Engine), Thomas Saf-T-Liner(John Deere CNG Engine), Tigercat 724D(JD 6081 Engine), Timberjack 2515(John Deere Engine), 2518(John Deere Engine) From 01/84 To 12/88, 2520(John Deere Engine) From 01/90 To 12/97, 2628(John Deere Engine), 530B(JD 6081A PowerTech Engine), 530B 187kW 255hp(John Deere 6081A Engine) From 01/01, 560D 123kW 168hp(John Deere 6081T Engine) From 01/01, 660D(JD 6081A PowerTech Engine), 660D 156kW 213hp(John Deere 6081A Engine) From 01/00, Wacker Neuson G155(JD 6081 Engine)
