SPECIFICATIONS:

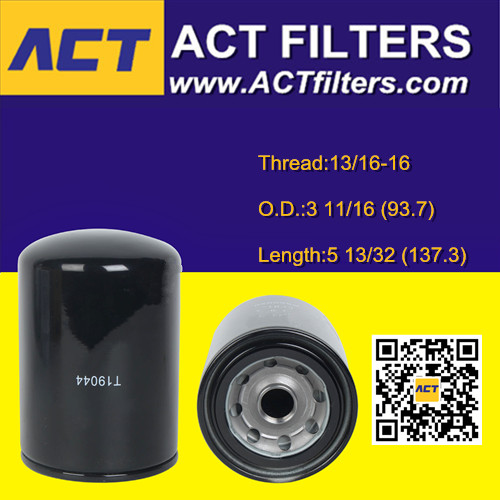

Part No: T19044 AR58956

DIMENSIONS:
Thread:13/16-16
O.D.:3 11/16 (93.7)
Length:5 13/32 (137.3)

CROSS REFERENCE:
AC Delco PF17, PF28, Agco 303483584, Alco SP808, SP-808, AP Lockheed AP3411, AP3411A, LK3411, LK-3411, LK3411A, LK-3411A, Baldwin BT259, Baudouin 16017310V, 1601731OV, Blaw Knox 16470300, Bosch 0451104005, 0451104005850, 0451104005-850, 451104005, 451-104-005, 451104005850, 451-104-005-850, 9457280140, 9-457-280-140, BOF4005, P4005, Case IHC 998457R91, 998457-R91, K200073, Caterpillar 3I1089, 9Y4450, 9Y-4450, Chrysler Dodge L317, Claas CT6005012109, Clark 6511730, Coopers Fiaam AZL029, FT4580, Z23, Z32, Z33, Crosland 608, Digoema DGM/O4580, DGMO4580, Donaldson LFP550020, P550020, P779146, Dynalife CN51243, Fil ZP503A, Filtration Control FCL7125, Filtron OP647/3, OP6473, Fleetguard LF678, Fleetrite LFR8678, Fram PH20, PH20A, Gehl L94746, Giesse CLH727/2, CLH7272, Greyfriars 949S, Guiot GH2000, Harmo S854, Hengst H15W, H17W09, Ingersoll Rand 35308030, John Deere AR58956, AT19044T, RE506575, T19044, T19044D, T19044T, T19044-T, T19044TH, T19044TL, T1944, Koehring 8320239, Kohler 223604, Kralinator L39, L39A, Kubota 7000014640, 70000-14640, Lautrette Mecafilter ELH4301, ELH4302, Luberfiner FP20, LFP20, M Filter MH376, MH376X, Mahle Knecht AW143, FO3713, OC103, Mann W936/4, W9364, W93640, Massey Ferguson 1900366, Micro PHM20, Motorcraft FL175, Napa 1243MP, 4068, New Holland 9613322, Orenstein and Koppel 103852, Permatic ELH4712, GL329, Purflux LS168, Purolator Facet 6665983, FO371/3, L30015, ML30015, PC24, PER306, Renault 0003132302, 6005012109, 7701456922, Sakura C7910, C-7910, Sambron 58755, Savara 2699/30, 269930, 9.28.014.17, 928014, 92801411, 92801417, 92818411, SO014, SF Schupp SP4280, Sofima S8700R, Sure SFO0678, Tecneco OL78, Tecnocar R78, Teho OK68, Toro 184360, 18-4360, TRP 1534541, UFI 23.112.00, 2311200, Vapormatic CPD5015, VPD5015, Vauxhall GM 25011162, 6436383, 6437968, Wabco BC8813, White 30-3483584, Wix 51243, 51243MP, CW243MP, Woodgate WGL678, Zetor 27710793, 2771-0793, 77010793, 7701-0793, 793

APPLICATIONS:
John Deere 693D, 699(303 Diesel Engine), 699(329 Diesel Engine), 699(Gas Engine), 70; 70D, 700; 734(152 Diesel Engine), 700; 734(Gas Engine), 710 37kW 50hp(4152D Engine), 710B, 710C, 710D(6059, 6068 Engine), 710E, 7200(John Deere 6059 Engine), 7200(6059 Engine), 7210(6068T Engine), 7210 81kW 110hp(John Deere 6.8L 6-cyl diesel Engine) From 01/97 To 12/02, 730, 730(John Deere Engine), 1010 From 01/60 To 12/65, 1010; 1010C; 1010D, 1020, 1020; 1020OU; 1020VU 32kW 44hp(3152D Engine) From 01/65 To 12/73, 1030, 1030 34kW 46hp(3164D Engine) From 01/73 To 12/79, 1032 37kW 50hp, 1032; 1042; 1052, 1035, 1040; 1040F; 1040V, 1040; 1040V 37kW 50hp(3179D Engine) From 01/76, 1042, 105, 1052, 1055, 1055, 1065, 1065 (MD1065) 77kW 105hp, 1065; 1068H, 1068, 1068H, 1072 (MD1072) 126kW 171hp, 1072; 1075; 1075 H4, 1075, 1075 (MD1075) 110kW 150hp(6359 TZ 02 Engine) From 01/82 To 12/89, 1075 H4 (MD1075 H4)(6359 TZ 02 Engine) From 01/82 To 12/89, 1085; 1085 H4 Hydro 4, 1120, 1120; 1120LS 36kW 49hp(3164D Engine) From 01/67 To 12/75, 1130, 1130 38kW 52hp(3164D Engine), 1133, 114; 116W, 1140; 1140AV(3179D Engine) From 01/76, 1140; 1140V, 1144, 1155, 1155, 1157(6359D Engine), 1158(6359T Engine), 1158, 1165, 1166 S2; 1166 S2 Hydro 4(CD 6359 TZ002 Engine) From 01/89, 1166; 1169, 1166H; 1166H Hydro 4(CD 6359 TZ003 Engine) From 01/89, 1169H Hydro4, 1174, 1174 Hydro4(6359T Engine), 1174 S2; 1174 S2 Hydro 4(CD 6359 TZ002 Engine) From 01/91, 1174; 1174H4; 1174 S2, 1175; 1175H, 1177, 1177 Hydro 4(6359T Engine), 1177; 1177 S2 118kW 160hp(6359T Engine), 1177; 1177H; 1177 S2, 12; 25; 30, 1250, 1250 32kW 44hp(Yanmar Engine) From 01/82 To 12/89, 1350, 1350 28kW 38hp(3179D Engine) From 01/86 To 12/94, 1445F From 01/88 To 12/91, 1450, 1450 40kW 55hp(Yanmar Engine) From 01/84 To 12/88, 1520, 1520 35kW 47hp From 01/68 To 12/72, 152D, 1530, 1530 33kW 45hp(John Deere Engine) From 01/73 To 12/75, 1530 33kW 45hp(John Deere Engine) From 01/73 To 12/75, 155, 1550, 1550 32kW 43hp(3179D Engine) From 01/87 To 12/94, 1630, 1630 41kW 56hp(3179D Engine) From 01/73 To 12/79, 1630; 1630UV, 1635, 1640, 1640; 1640F, 1640; 1640F 46kW 63hp(4239D Engine) From 01/80 To 12/82, 164D, 164G, 165, 1650, 1650 49kW 67hp(Yanmar Engine) From 01/84 To 12/88, 1745F From 01/88 To 12/91, 1750, 1750 37kW 49hp(3179D Engine) From 01/87 To 12/94, 180, 1830, 1830 45kW 60hp(4219D Engine) From 01/73 To 12/79, 1840(4239D Engine), 1840, 1845F(2940T Engine) From 01/88 To 12/91, 1850, 1850 45kW 60hp(3179D Engine) From 01/73 To 12/79, 190E, 1950, 1950, 1950 48kW 64hp(3179T Engine) From 01/88 To 12/94, 2000, 2000, 2000, 2010 35kW 47hp From 01/60 To 12/65, 2010; 2010C; 2010D, 2020 40kW 54hp(John Deere Engine) From 01/65 To 12/71, 2020 44kW 60hp(4202D Engine), 202G, 2030, 2030, 2030 50kW 68hp(4219D Engine) From 01/71 To 12/75, 2035, 2040(3179D Engine) From 01/76 To 12/82, 2040, 2040; 2040F; 2040S 51kW 70hp(4239D Engine), 2040S, 2054(CD 6068 HZ001 Engine) From 01/90 To 12/99, 2054, 2056(RG 6076 AZ031 Engine) From 01/90 To 12/99, 2058(RG 6076 AZ030 Engine) From 01/90 To 12/99, 2100 From 01/60 To 12/65, 2100, 2100, 210C, 2120, 2120, 2120 50kW 68hp(4219D Engine) From 01/69 To 12/72, 2130, 2130, 2130 55kW 75hp(4239D Engine) From 01/73 To 12/77, 2135, 2140, 2140, 2140; 2140DT 60kW 82hp(4239T Engine) From 01/80 To 12/87, 215, 2150, 2150 34kW 46hp(3179D Engine) From 01/83 To 12/86, 2155, 2155 40kW 55hp(3179D Engine) From 01/87 To 12/92, 217, 219D, 219G, 2200, 2200 50kW 68hp, 2200 50kW 68hp, 2240, 2240 44kW 60hp(3179D Engine) From 01/76 To 12/82, 2250(3179D Engine) From 01/87 To 12/94, 2250, 2250(219 Diesel Engine), 2250 46kW 63hp(4239D Engine), 2254, 2254, 2254 132kW 180hp(CD 6068 HZ001 Engine) From 01/99, 2255, 2255 37kW 50hp(3179D Engine) From 01/83 To 12/87, 2270(John Deere Engine), 2280, 2300, 2300 55kW 74hp, 232, 2345F(2940T Engine) From 01/88 To 12/91, 2350 41kW 56hp(4239D/4039D Engine) From 01/83 To 12/86, 2355, 2355 49kW 67hp(3179D Engine) From 01/87 To 12/92, 2355N From 01/87 To 12/92, 2355N, 2360, 239D; 239T, 240(3029D Engine), 240; 250(3029D, 3029T Engine), 2400, 2400 60kW 81hp, 2420(Diesel Engine), 2440(4219D Engine) From 01/76 To 12/82, 2440, 2450(4239D Engine) From 01/87 To 12/94, 2450, 2450, 2450, 248, 24D, 2510, 2510 37kW 50hp From 01/65 To 12/68, 2520, 2520 46kW 62hp(John Deere Engine) From 01/68 To 12/72, 2550, 2550 49kW 66hp(John Deere Engine) From 01/83 To 12/86, 2555, 2555 57kW 77hp(John Deere Engine) From 01/87 To 12/92, 260(JD 3029T PowerTech Engine), 2630 51kW 70hp(John Deere Engine) From 01/74 To 12/75, 2630; 2640, 2640 51kW 70hp(4276D Engine) From 01/76 To 12/83, 2650, 2650 57kW 78hp(4239T Engine) From 01/87 To 12/94, 2650; 2650N, 2750, 2750 55kW 75hp(4239T Engine) From 01/83 To 12/86, 2755, 2755 65kW 88hp(4239T Engine) From 01/87 To 12/92, 276D; 276T, 2840, 2840 60kW 81hp(6329D Engine) From 01/77 To 12/79, 2850, 2850, 2850 63kW 86hp(4239T Engine) From 01/86 To 12/94, 2855N, 2855N 59kW 80hp(John Deere Engine) From 01/87 To 12/92, 290D, 2940, 2940 60kW 82hp(6359D Engine) From 01/80 To 12/82, 2950, 2950 63kW 85hp(John Deere Engine) From 01/83 To 12/88, 2955, 2955 63kW 86hp From 01/87 To 12/92, 299(217 Engine), 299(248 Engine), 300B, 300D, 301A, 302, 3029 Tier 2, 3029D PowerTech 43kW 59hp, 3029D; 3029T Tier 2, 3029T PowerTech 59kW 79hp, 302A, 303, 3030, 3030, 3040, 3040 67kW 92hp(6359D Engine) From 01/80 To 12/87, 3040; 3140, 3050, 3050, 3050 68kW 93hp(6359D Engine) From 01/86 To 12/93, 3055, 3055 68kW 92hp(6359T Engine) From 01/92 To 12/93, 310 24kW 33hp(3152D Engine), 3100, 3100 41kW 56hp(John Deere 4039DRT65 Engine) From 01/95 To 12/98, 310A, 310B, 310C, 310D, 310D, 3110 41kW 56hp(3029 DRT65 Engine) From 01/98, 3120 22kW 30hp(Yanmar Engine) From 01/05, 3130, 3130 60kW 81hp(John Deere Engine) From 01/73 To 12/79, 3130 65kW 89hp From 07/72, 3135, 3140; 3140DT, 3140; 3140DT 68kW 93hp(6359D Engine) From 01/80 To 12/82, 3150, 3150 70kW 95hp(6359D Engine) From 01/85 To 12/87, 3155 From 01/88 To 12/92, 3155, 315C, 315CH, 315D, 315D, 3164D, 3164G, 3179D; 3179T, 3200, 3200; 3200X, 3200; 3200X 48kW 65hp, 3210; 3210A; 3210A Komfort X 49kW 67hp(4045D Engine) From 01/98, 3255(6359T Engine) From 01/91 To 12/93, 3255, 329D, 329G; 329L, 330(John Deere Engine), 3300(Diesel Engine), 3300(Gas Engine), 3300; 3300X, 3300; 3300X 55kW 75hp(4045 DRT35 Engine) From 01/95 To 12/98, 3310; 3310A; 3310A Komfort X 57kW 78hp(4045 DRT35 Engine) From 01/98, 3340; 3340DT, 3350, 3350, 3350 74kW 101hp(6359D Engine) From 01/86 To 12/93, 3400; 3400X, 3400; 3400X 63kW 86hp, 340D, 3410(4039 TRT35 Engine) From 01/99, 3410A Komfort X 64kW 87hp(4045T Engine) From 01/98, 341G, 3430, 3430(4239 Engine), 344E, 344G(4045T Engine), 350C, 350C, 359D; 359T, 362G; 362L, 3640, 3640 82kW 114hp(6359D Engine) From 01/84 To 12/87, 3640S, 3650, 3650, 3650 84kW 114hp(6359T Engine) From 01/86 To 12/93, 3830(4039 Engine), 3830(4239 Engine), 40, 400G, 400G, 400G, 401B, 401C, 401D, 4030(6329D Engine) From 01/73 To 12/77, 4030, 4039D; 4039T, 4040; 4040S(6359T Engine) From 01/78 To 12/82, 4045D PowerTech 63kW 85hp, 4045DF; 4045TF, 4045H PowerTech 104kW 140hp, 4045T PowerTech 93kW 125hp, 404D, 4050(6359T Engine), 4050(6466DR/TR Engine), 4050(6359 Engine), 410, 410B, 410C, 410D, 410D, 414D; 414T, 4219D, 4219G, 4239D; 4239T; 4276D; 4276T, 430, 430(John Deere Engine), 4400(219, 329 Diesel Engine), 4400(303 Diesel Engine), 4400; 4400A Compact 25kW 34hp(3TNE88 Engine) From 01/98 To 12/01, 4400; 4500, 4400TJ 74kW 101hp(4039TF Engine) From 01/94 To 12/00, 440C, 440C, 440D, 4420, 4425(6359 Engine), 4435; 4435 Hydro, 444C; 444CH, 444D(6239 Engine), 444E, 444G(4045T Engine), 448D, 45, 450, 450, 450, 4500, 4500TJ 74kW 101hp(4039TF Engine) From 01/94 To 12/00, 450B, 450B, 450B, 450C, 450C, 450C, 450D, 450D, 450D, 450E, 450E, 450E, 450G, 455, 455D, 455D, 455D, 455E, 455E, 455E, 455G, 480C, 482(219 Engine), 482(329 Engine), 482C, 484(6 Cyl 329 Engine), 484(6 Cyl 359 Engine), 490(JD 4239T Engine), 490D, 490E, 493D, 495D, 499(219 Diesel Engine), 5030, 5038D, 510 29kW 40hp(3152D Engine), 5103(3029 Engine), 5103 37kW 50hp(John Deere Engine) From 01/03, 5105(PowerTech 2.9L Engine), 5105 37kW 50hp(John Deere Engine) From 01/00, 510B, 510C, 510D, 510D, 515B, 5200(3029 Engine), 5200 34kW 46hp(6404A Engine) From 01/92 To 12/97, 5203(3029TF Engine), 5203 41kW 56hp(John Deere Engine) From 01/03, 5204(3029 Mexico version Engine), 5205(PowerTech 2.9L Engine), 5205 41kW 56hp(John Deere Engine) From 01/00, 5210, 5210 39kW 53hp(3029D Engine) From 01/98 To 12/00, 5215(3029T Europe version Engine), 5215 41kW 55hp, 5215F; 5215V 41kW 55hp(3029TAT70 Engine), 5220(PowerTech 2.9L Engine), 5220 39kW 53hp(3029D Engine) From 01/00 To 12/04, 530, 530, 5300(3029 Engine), 5300, 5300 41kW 56hp(3029D Engine) From 01/92 To 12/97, 5300N, 5300N 41kW 56hp(3029D Engine), 5303(3029 All Other Editions Engine), 5303(3029 South Africa version Engine), 5303(3029TF Engine), 5303 47kW 64hp(John Deere Engine) From 01/03, 531, 5310, 5310(3029 Engine), 5310A; 5310N; 5310NA; 5310SN; 5310SNA 39kW 53hp(3029D Engine) From 01/98 To 12/00, 5310N(3029 Engine), 5315(3029T Europe version Engine), 5315 48kW 65hp, 5315F; 5315V 48kW 65hp(3029TAT70 Engine), 5320; 5320N(2.9L PowerTech Engine), 5320; 5320N 47kW 64hp(3029T Engine) From 01/00 To 12/04, 5400; 5400N, 5400; 5400N 52kW 71hp(3029T Engine) From 01/92 To 12/97, 5400N(3029 Europe version Engine), 5403(3029 South Africa version Engine), 5403(3029T Engine), 5403(3029T Engine), 540B, 540D, 540D, 540E, 540G, 5410A; 5410N; 5410NA; 5410SN; 5410SNA 52kW 71hp(3029T Engine) From 01/00, 5410N(3029, 4045 Engine), 544(Diesel Engine), 544C, 544D(6414T Engine), 544E, 544G; 544GTC; 544GLL(6059T Engine), 544G; 544GTC; 544GLL(6059T Engine), 544G; 544GTC; 544GLL(6059T Engine), 5480, 548D, 548D, 548E, 548G(JD 6059T Engine), 55, 550, 550, 5500 59kW 80hp(4039T Engine) From 01/95 To 12/97, 5500; 5500N(JD 4039T Engine), 5500N(4039 Europe version Engine), 5500N 59kW 80hp(4039T Engine), 550G, 555, 555, 555A, 555A, 555B, 555B, 555G, 570B, 590D, 595, 595D, 600; 600A(152 Diesel Engine), 600; 600A(Gas Engine), 6000(219 Diesel Engine), 6000, 6059D; 6059T, 6068T; 6068D, 6100, 6100(4039D, 4039T Engine), 6100; 6100SE 55kW 75hp(4045D Engine) From 01/92 To 12/97, 610B, 610C, 6200(4039T Engine), 6200, 6200; 6200E 62kW 85hp(4045T/4039T Engine) From 01/93 To 12/98, 6200L(4045T Engine), 624E, 624G(6068T Engine), 624G(6068T Engine), 624G(6068T Engine), 630, 630, 6300(4039T Engine) From 01/92 To 12/97, 6300(4039T Engine), 6300, 6300 66kW 90hp(4045T Engine) From 01/92 To 12/97, 6300L(4045T Engine), 630OU, 6329D, 6329G; 6329L, 6359D; 6359T, 6362G; 6362L, 640, 6400(4045T Engine), 6400, 6400, 6400 73kW 100hp(4045T Engine) From 01/92 To 12/98, 6400L(4045T Engine), 6404D, 640D, 640E, 640G, 6414D; 6414T, 643, 643D, 644G(6076 Engine), 648D, 648E, 648G(6076 Engine), 6500(4045T Engine) From 01/95 To 12/97, 6500(John Deere 4039 T Engine), 6500(4045T Engine), 6500 Hi-Cycle, 6500 Self Propelled, 6500; 6600(4039T Engine), 6500L(4045T Engine), 6506, 6506, 6506 77kW 105hp(6068D Engine) From 01/95 To 12/97, 650G; 650G LGP, 650G; 650G LGP, 6531, 653E, 655, 655B, 658E(JD 6068T Engine), 6600(329 Diesel Engine), 6600(Gas Engine), 6600, 6600, 6600 81kW 110hp(6068D Engine) From 01/94 To 12/97, 6600 81kW 110hp(John Deere 6068 Engine) From 01/94 To 12/97, 6602(362 Gas Engine), 6610, 672A, 672B, 6800, 6800, 6800, 6800, 6800 88kW 120hp(6068T Engine) From 01/94 To 12/97, 6900, 6900, 6900 96kW 131hp(6068T Engine) From 01/94 To 12/97, 690D; 690DR(6414T Engine), 690E LC(6068T Engine), 824J(6125 PowerTech Engine), 7400, 7400 74kW 100hp(6068T Engine) From 01/93 To 12/96, 7410(6068T Engine), 7410 88kW 120hp(John Deere 6.8L 6-cyl diesel Engine) From 01/97 To 12/02, 7440, 7445, 744H(6125A PowerTech Engine), 744H MH, 744J(6125 PowerTech Engine), 7450, 750, 7500, 750B, 750C(JD 6068 Engine), 7510(6068T Engine), 7510 99kW 135hp(John Deere 6.8L 6-cyl diese Engine) From 01/99 To 12/02, 755A, 755B, 7600(6068T Engine), 7600 96kW 131hp(6081T Engine), 7610 103kW 140hp(6068T Engine), 762A, 762B, 7700(362GH Engine), 7710; 7710 A; 7710 Powermode 118kW 161hp(6081T Engine), 7745, 7810; 7810 A; 7810 Powermode 129kW 176hp(6081T Engine) From 01/97 To 12/03, 790E LC, 820; 820VU 26kW 35hp(3152D Engine) From 01/68 To 12/73, 830 28kW 38hp(3164D Engine) From 01/73 To 12/75, 840 28kW 38hp(3179D Engine) From 01/79 To 12/86, 862, 862B, 880(Diesel Engine), 880(Gas Engine), 8875, 92 Gas; 115 Gas; 135 Gas; 145 Gas; 152 Gas, 920 30kW 41hp(3152D Engine), 925, 925, 930, 930 30kW 41hp(3164D Engine), 930; 930VU, 930; 940, 932, 932, 935, 935, 940, 940, 940(3179D Engine) From 01/76 To 12/86, 940, 9400, 9400, 942, 942, 945, 945, 948, 95(John Deere Engine), 950, 950; 960; 970, 952, 952, 955, 960, 965, 965; 965 H4, 965; 965H, 968H, 970 82kW 111hp(Yanmar Engine) From 01/89 To 12/98, 975, 975; 975 H4, 975HY-4, 985, 985; 985 H4 Hydro 4, 99, 9900, 9910, 9920, 9930, JD145; JD155, JD165, JD2040; JD2040F; JD2040S, JD217; JD232; JD248, JD2350, JD24(Diesel Engine), JD300, JD301, JD310, JD350, JD350, JD350B, JD350B, JD350D; JD355D, JD350D; JD355D, JD380, JD400; JD401, JD401A, JD415; JD415B, JD440, JD440; JD440A; JD440B, JD440; JD440A; JD440B, JD444, JD480, JD480A; JD480B, JD540; JD540A, JD540; JD540A, JD544; JD544A, JD544B, JD550A; JD550B, JD550A; JD550B, JD570; JD570A, JD600 Hy-Cycle, JD648, JD670; JD670A; JD670B, JD700 Hy-Cycle, JD734 Hi-Cycle, JD755, JD762, JD820(Diesel Engine), JD830, JD920, ME8TB; M63VA, T300, T500, T700, T750
